Features
The AluBox is specifically designed for use in asset tracking RFID solutions. Each AluBox includes two WAVE® Antennas. This is an easy to install, plug-and-play gate system that uses multiple beams to locate and read large numbers of tags simultaneously.
WAVE® Antenna
Specifications
| Model Name | XRBS-A3 |
|---|---|
| Dimensions | 130 cm × 23.5 cm × 9 cm |
| Weight | 3.1 kg |
| Operating Temperature | –4 °F to 140 °F (–20 °C to 60 °C) |
| Frequency Range | 902 MHz to 928 MHz |
| Gain | 5.5 dBi |
| Impedance | 50 Ω |
| VSWR | < 1.7 : 1 |
| Polarization | Multi-linear |
| Maximum Input Power | 10 W |
| Beamwidth | 360° |
| Connector | TNC reverse polarity |
| Supplied Cable and Length | None |

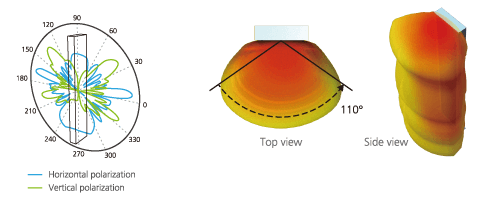

Antenna Radiation Pattern

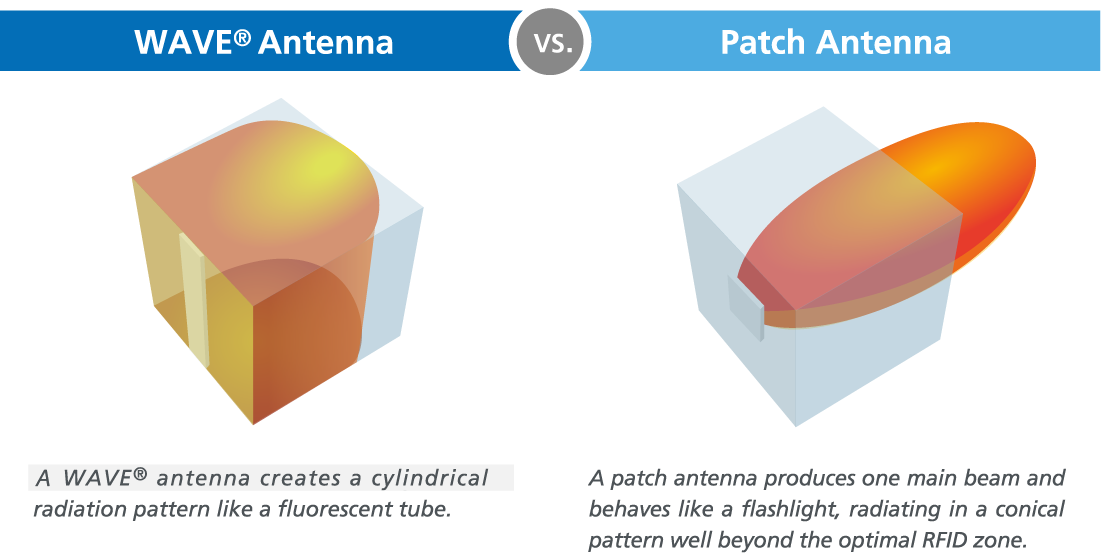

WAVE® Antennas are designed to uniformly illuminate a volume of space. When installed in pairs, the antennas complement each other and provide spatial, direction-of-arrival, and polarization diversities throughout the volume.
