Direction of Motion (DOM) Solution

Share on

Features

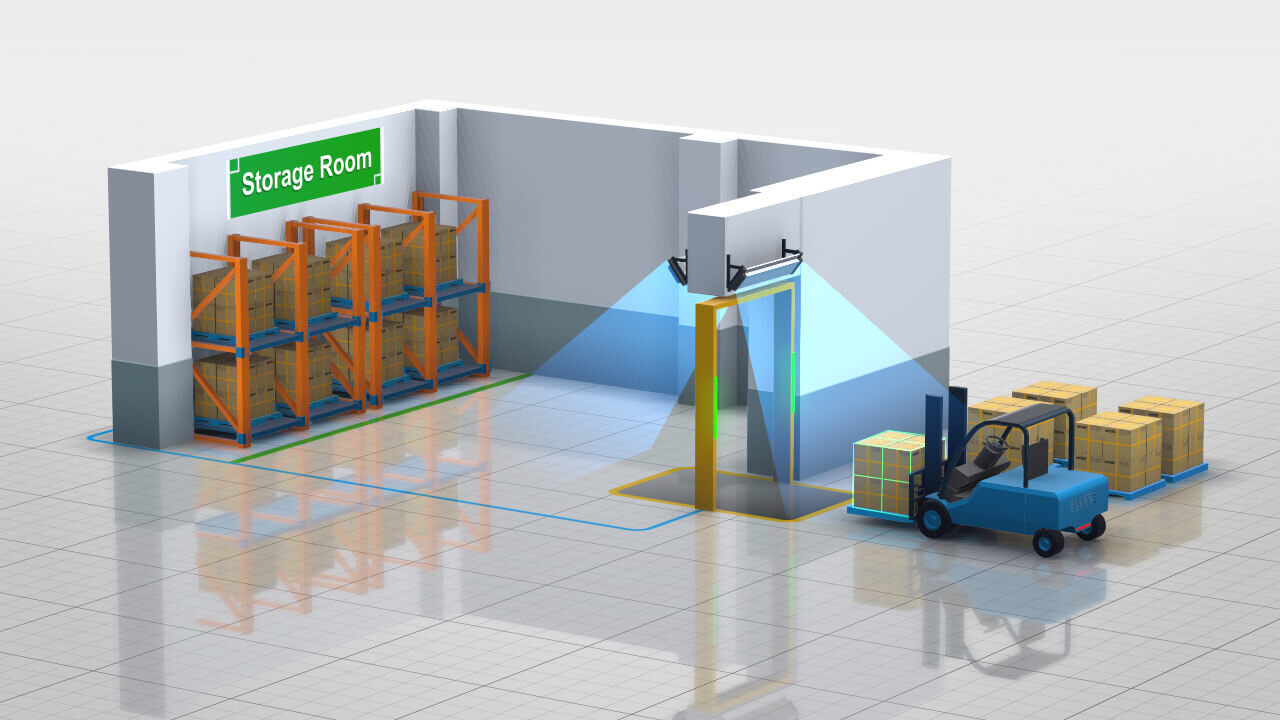

WNC’s direction of motion solution is a ceiling-mounted dual antenna solution that can detect the direction in which RFID tags are moving. The ceiling mounted nature of the solution saves space and doesn’t hinder movement on the warehouse floor, making it a great solution for managing material inventory and tracking the movements of roll containers.

Specifications

Model Name	XRBS-D5
Dimensions	210 cm × 41 cm × 16 cm
Weight	3.1 kg
Operating Temperature	–4 °F to 140 °F (–20 °C to 60 °C)
Frequency Range	902 MHz to 928 MHz
Gain	5.5 dBi
Impedance	50 Ω
VSWR	< 1.7 : 1
Polarization	Multi-linear
Maximum Input Power	10 W
Beamwidth	110°
Connector	TNC reverse polarity
Supplied Cable and Length	None
Options, Accessories, and Components	Accessories: RFID reader, RF cables, customized logo on front plate

Antenna Radiation Pattern

WAVE® Antennas are designed to uniformly illuminate a volume of space. When installed in pairs, the antennas complement each other and provide spatial, direction-of-arrival, and polarization diversities throughout the volume.
